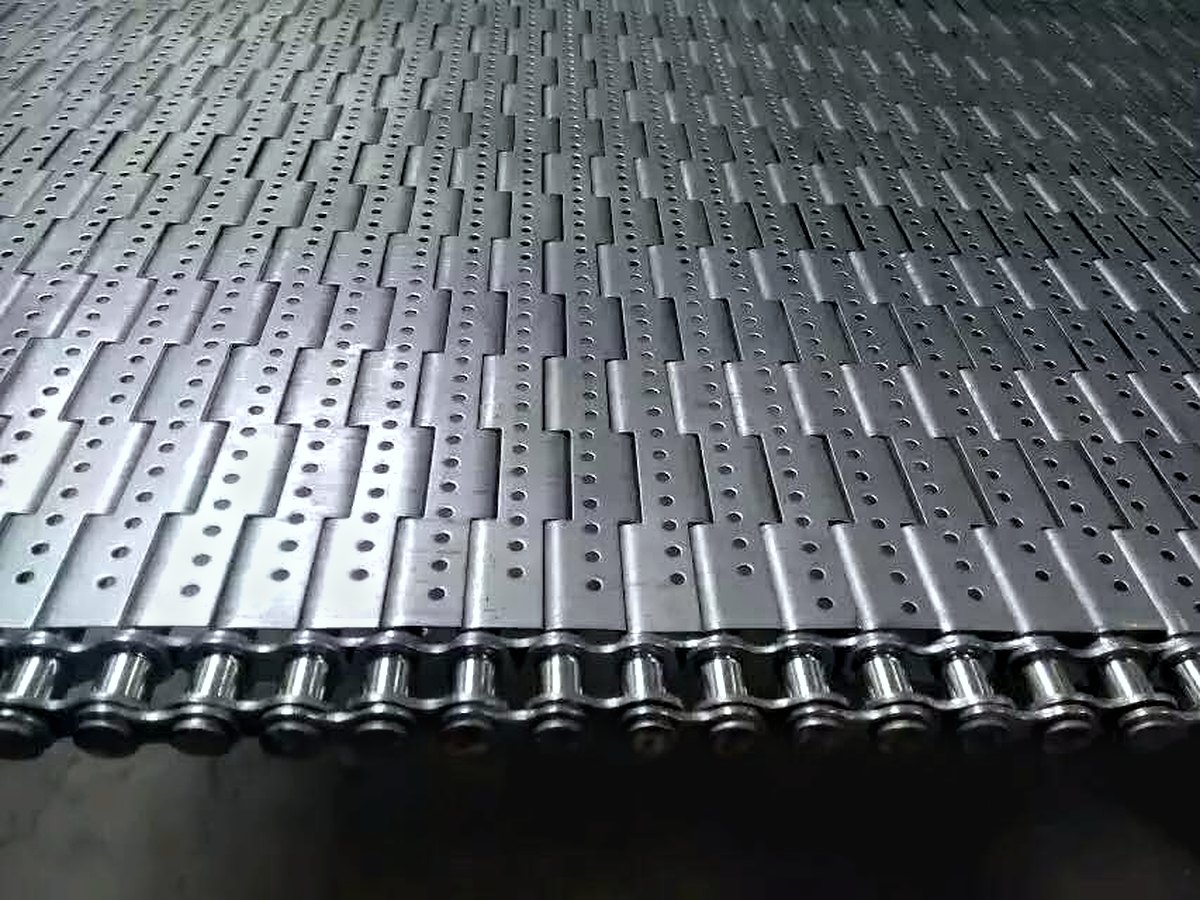

Chain Plate Conveyor
Durable chain plate conveyors for demanding production lines.
Chain plate conveyors are suitable for heavier products, unstable items, high-wear environments and layouts that need lifting, turning or custom guide rails.
Custom chain plate conveyor design
We can customize conveyor length, width, height, chain plate material, side guard, frame structure, motor position and speed control. The conveyor can be supplied as a single unit or connected with upstream and downstream equipment.
For OEM and overseas projects, we can review layout drawings and recommend practical structure before production.
- Stainless steel or carbon steel chain plate options
- Straight, inclined, lifting and transfer conveyor layouts
- Side guards, guide rails, drip trays and support frames available
- Used in food, packaging, mechanical parts and automation lines
Technical data 技术参数
Standard specification range for chain plate belts常规规格范围
Chain plate belts are selected by plate thickness, hole pattern and chain pitch. Send the product weight and incline angle for a load check.超出下表的尺寸可按图纸或样品评估后报价。
| Parameter / 参数 | Standard range / 常规范围 | How to choose / 选型说明 |
|---|---|---|
| Material / 材质 | SS304, SS316, carbon steel, galvanized steel | SS304 for food contact; carbon steel for heavy industrial duty. |
| Plate thickness T / 板厚 | 1.0 – 3.0 mm | Thicker plates resist deformation under point loads and impacts. |
| Plate width W / 板宽 | 200 – 2000 mm | Wider plates need additional support rollers under the belt. |
| Hole diameter Ø / 冲孔孔径 | 2 – 12 mm | Used for drainage, airflow or product positioning. |
| Open area / 开孔率 | 20 % – 60 % | Higher open area drains faster but reduces the load-bearing surface. |
| Chain pitch P / 链节距 | 25.4 / 31.75 / 38.1 / 50.8 / 63.5 / 76.2 / 101.6 mm | The sprocket must use the same pitch and tooth profile. |
| Load capacity / 承载能力 | Up to 150 kg/m² (depending on support) | Add support rails for heavy or concentrated loads. |
| Attachments / 附件 | Flights, side guards, cleats, perforations | Flights are needed for inclines above roughly 15 degrees. |
Selection guide 选型对照
Which plate configuration fits your duty?按工况快速选型
| Working condition / 工况 | Recommended / 推荐型号 | Reason / 理由 |
|---|---|---|
| Washing or draining wet product | Perforated plate, 40 – 60 % open area | Large open area removes water quickly and speeds up downstream drying. |
| Elevating or inclined conveying | Plate with flights and side guards | Flights stop the product from sliding back on the incline. |
| Heavy parts or impact loading | Thick plate (2.5 – 3.0 mm) with support rails | Plate stiffness plus support prevents permanent denting. |
| Hot product needing airflow | Perforated plate with moderate open area | Balances cooling airflow against the need to support the product. |
| Flat, stable transport for packaging | Solid (non-perforated) plate | Smooth surface suits boxes, trays and packaged goods. |
Not sure which row matches your line? Send the product, temperature, load and line speed to sales-lxw@sxdindustrial.com and we will confirm the selection. 如不确定对应哪一行，把物料、温度、载重和线速发给我们，我们会确认选型。
